Description:

A low or medium carbon steel, externally threaded mechanical device, 1/4 inch in diameter or larger, with a trimmed hex head and
a hot-dip galvanized coating. A hex bolt does not have a washer face on its bearing surface as does a hex cap screw, nor does it have a machined point. Its body tolerances are not as close as those of a cap screw.

Advantages:

Designed to be used in highly corrosive environments (ie. coastal locales and heavily polluted atmospheres). May be inserted into
an oversized hole and should be assembled with a nut.

Hex Head Bolts Hot Dip Galvinized

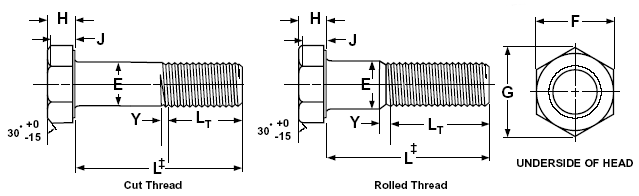

HEX CAP SCREWS ASME B18.2.1-1996
Nominal or Basic Product Diameter		E		F			G		H			J	Lt		Y
		Body Diameter		Width Across Flats			Width Across Corners		Head Height			Wrn. Hgt.	Thread Length		Trans -ition Thd Lgt.
		Body Diameter		Width Across Flats			Width Across Corners		Head Height			Wrn. Hgt.	For Scw Lgt. <6in.	For Scw Lgt. >6in.	Trans -ition Thd Lgt.
		Max	Min	Basic	Max	Min	Max	Min	Basic	Max	Min	Min	Ref	Ref	Max
1/4	0.2500	0.260	0.237	7/16	0.438	0.425	0.505	0.484	11/64	0.188	0.150	0.03	0.01	0.750	1.000
5/16	0.3125	0.324	0.298	1/2	0.500	0.484	0.577	0.552	7/32	0.235	0.195	0.03	0.01	0.875	1.125
3/8	0.3750	0.388	0.360	9/16	0.562	0.544	0.650	0.620	1/4	0.268	0.226	0.03	0.01	1.000	1.250
1/2	0.5000	0.515	0.482	3/4	0.750	0.725	0.866	0.826	11/32	0.364	0.302	0.03	0.01	1.250	1.500
5/8	0.6250	0.642	0.605	15/16	0.938	0.906	1.083	1.033	27/64	0.444	0.378	0.06	0.02	1.500	1.750
3/4	0.7500	0.768	0.729	1-1/8	1.125	1.088	1.299	1.240	1/2	0.524	0.455	0.06	0.02	1.750	2.000
7/8	0.8750	0.895	0.852	1-5/16	1.312	1.269	1.516	1.447	37/64	0.604	0.531	0.06	0.02	2.000	2.250
1"	1.0000	1.022	0.976	1-1/2	1.500	1.450	1.732	1.653	43/64	0.700	0.591	0.09	0.03	2.250	2.500

Tolerance on Length				Nominal Screw Size		Nominal Screw Length
				Nominal Screw Size		Up to 1 in., incl.		Over 1 in. to 2-1/2 in., incl.		Over 2-1/2 in. to 4 in., incl.		Over 4 in. to 6 in., incl.		Longer than 6 in.
				1/4 to 3/8		-0.03		-0.04		-0.06		-0.10		-0.18
				7/16 and 1/2		-0.03		-0.06		-0.08		-0.10		-0.18
				9/16 to 3/4		-0.03		-0.08		-0.10		-0.10		-0.18
				7/8 and 1		....		-0.10		-0.14		-0.16		-0.20
				1-1/8 to 1-1/2		....		-0.12		-0.16		-0.18		-0.22

‡Length of a cap screw is measured from the underhead bearing surface to the extreme end of the screw.

*These properties are tested only on machined specimens when the testing machine cannot provide for full testing of the parts.
**Product standards require the manufacturer’s head marking to appear on the top of all cap screws 1/4” diameter and larger. “X” represents one location such a marking may appear.
