Description:

A325: A heavy hex bolt made of medium carbon steel. The bearing surface shall be flat and washer faced, and the point is chamfered.



A490: A heavy hex bolt made of alloy steel. The bearing surface shall be flat and washer-faced, and the point is chamfered.



Advantages:

A325:

Commonly used in structural steel joints in heavy construction.



A490:

Used in structural steel joints in heavy construction when greater yield and tensile strengths than those of an A325 bolt are required. A Type 3 bolt is approximately twice as resistant to corrosion as a Type 1 bolt.

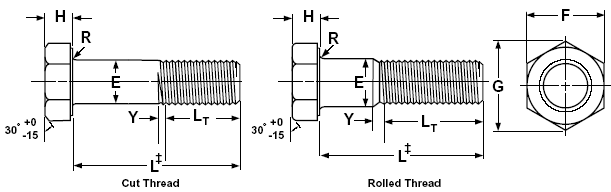

Heavy Hex Head Bolts A325 & A490



STRUCTURAL BOLTS, A325 & A490 ASME B18.2.6-1996

Nominal

or
Basic

Product

Diameter

E
F
G
H
R
Lt
Y
Body Diameter
Width Across Flats
Width
Across
Corners
Head Height

Radius

of Fillet

Thread Length



Tran-

sition

Thread

Length

Max
Min
Basic
Max
Min
Max
Min
Basic
Max
Min
Min
Min
Ref
Basic
1/2
0.5000
0.515
0.482
7/8
0.875
0.850
1.010
0.969
5/16
0.323
0.302
0.031
0.009
1.00
0.19
5/8
0.6250
0.642
0.605
1-1/16
1.062
1.031
1.227
1.175
25/64
0.403
0.378
0.062
0.021
1.25
0.22
3/4
0.7500
0.768
0.729
1-1/4
1.250
1.212
1.443
1.383
15/32
0.483
0.455
0.062
0.021
1.38
0.25
7/8
0.8750
0.895
0.852
1-7/16
1.438
1.394
1.660
1.589
35/64
0.563
0.531
0.062
0.031
1.50
0.28
1"
1.0000
1.022
0.976
1-5/8
1.625
1.575
1.876
1.796
39/64
0.627
0.591
0.093
0.062
1.75
0.31
1-1/8
1.1250
1.149
1.098
1-13/16
1.812
1.756
2.093
2.002
11/16
0.718
0.658
0.093
0.062
2.00
0.34
1-1/4
1.2500
1.277
1.223
2
2.000
1.938
2.309
2.209
25/32
0.813
0.749
0.093
0.062
2.00
0.38
1-3/8
1.3750
1.404
1.345
2-3/16
2.188
2.119
2.526
2.416
27/32
0.878
0.810
0.093
0.062
2.25
0.44
1-1/2
1.5000
1.531
1.470
2-3/8
2.375
2.300
2.742
2.622
15/16
0.974
0.902
0.093
0.062
2.25
0.44
1-3/4
1.7500
1.785
1.716
2-3/4
2.750
2.662
3.175
3.035
1-5/32
1.196
1.054
0.12
0.04
3.750
4.000
2"
2.0000
2.039
1.964
3-1/8
3.125
3.025
3.608
3.449
1-11/32
1.388
1.175
0.12
0.04
4.250
4.500
2-1/4
2.2500
2.305
2.214
3-1/2
3.500
3.388
4.041
3.862
1-1/2
1.548
1.327
0.19
0.06
4.750

5.000
2-1/2
2.5000
2.559
2.461
3-7/8
3.875
3.750
4.474
4.275
1-21/32
1.708
1.479
0.19
0.06
5.250
5.500
2-3/4
2.7500
2.827
2.711
4-1/4
4.250
4.112
4.907
4.688
1-13/16
1.869
1.632
0.19
0.06
5.750
6.000
3"
3.0000
3.081
2.961
4-5/8
4.625
4.475
5.340
5.102
2
2.060
1.815
0.19
0.06
6.250
6.500

‡Length of a cap screw is measured from the underhead bearing surface to the extreme end of the screw.


**Product standards require the manufacturer’s head marking to appear on the top of all cap screws 1/4” diameter and larger. “X” represents one location such a marking may appear.
