Description:
A forged bolt without welds, with a head in the form of an open or closed anchor ring. Bolt shall have a unified thread pitch.
Shoulder pattern eyebolts shall have an unthreaded shoulder below the anchor ring which is greater in diameter than the threaded shank.
Advantages:
Used in applications where a forged shank is required, ie. in a rigging when mounted atop a uniformly distributed weight.
|
|
Forged Eye Bolts

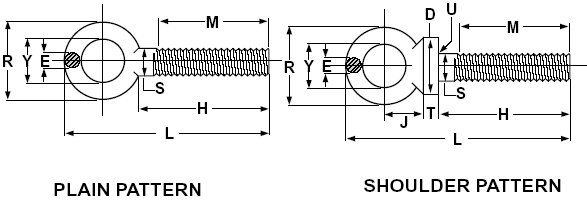

FORGED EYEBOLTS, PLAIN PATTERN ANSI/ASME B18.15 |
|
S |
H |
Y |
R |
E |
L |
M |
Thread
Size
UNC-2A |
Shank
Diameter |
Shank Length |
Eye ID |
Nominal
Eye OD |
Eye Sect.
Diameter |
Overall
Length |
|
Long Length |
Short Length |
Long Length |
Short Length |
|
|
0.25
0.28 |
1.00
1.06 |
1.00
1.06 |
0.69
0.81 |
1.19 |
0.19
0.25 |
2.06
2.38 |
0.75 |
0.75 |
1/4-20 or
.250-20 |
|
|
0.31
0.34 |
1.12
1.19 |
1.06
1.13 |
0.81
0.94 |
1.44 |
0.25
0.31 |
2.44
2.75 |
0.81 |
0.75 |
5/16-18 or
.3125-18 |
|
|
0.38
0.41 |
1.25
1.38 |
1.12
1.25 |
0.94
1.06 |
1.69 |
0.31
0.38 |
2.81
3.19 |
0.88 |
0.75 |
3/8-16 or
.375-16 |
7/16 |
0.44 |
0.44
0.47 |
1.38
1.50 |
1.13
1.25 |
1.00
1.12 |
1.81 |
0.34
0.41 |
3.06
3.44 |
1.00 |
0.75 |
7/16-14 or
.4375-14 |
1/2 |
0.50 |
0.50
0.53 |
1.50
1.62 |
1.13
1.25 |
1.12
1.25 |
2.12 |
0.44
0.50 |
3.50
3.88 |
1.12 |
0.75 |
1/2-13 or
.500-13 |
9/16 |
0.56 |
0.56
0.59 |
1.62
1.75 |
1.21
1.34 |
1.19
1.31 |
2.25 |
0.47
0.53 |
3.75
4.12 |
1.25 |
0.84 |
9/16-12 or
.5625-12 |
5/8 |
0.62 |
0.62
0.66 |
1.75
1.88 |
1.31
1.44 |
1.31
1.44 |
2.56 |
0.56
0.62 |
4.19
4.56 |
1.38 |
0.94 |
5/8-11 or
.625-11 |
3/4 |
0.75 |
0.75
0.78 |
2.00
2.12 |
1.50
1.62 |
1.44
1.56 |
2.81 |
0.62
0.69 |
4.69
5.06 |
1.62 |
1.13 |
3/4-10 or
.750-10 |
7/8 |
0.88 |
0.88
0.91 |
2.25
2.38 |
1.75
1.88 |
1.56
1.69 |
3.19 |
0.75
0.81 |
5.31
5.69 |
1.81 |
1.31 |
7/8-9 or
.875-9 |
1" |
1.00 |
1.00
1.06 |
2.50
2.62 |
1.94
2.06 |
1.69
1.81 |
3.56 |
0.88
0.94 |
5.94
6.31 |
2.06 |
1.50 |
1-8 or
1.000-8 |
1-1/8 |
1.12 |
1.12
1.19 |
2.75
2.88 |
2.13
2.26 |
1.94
2.06 |
4.06 |
1.00
1.06
|
6.69
7.06 |
2.31 |
1.69 |
1-1/8-7 or
1.125-7 |
1-1/4 |
1.25 |
1.25
1.34 |
3.00
3.12 |
2.38
2.50 |
2.12
2.25 |
4.44 |
1.09
1.16 |
7.31
7.69 |
2.50 |
1.88 |
1-1/4-7 or
1.250-7 |
1-1/2 |
1.50 |
1.50
1.59 |
3.50
3.62 |
2.75
2.87 |
2.44
2.56 |
5.19 |
1.31
1.38 |
8.56
8.94 |
3.00 |
2.25 |
1-1/2-6 or
1.500-6 |
1-3/4 |
1.75 |
1.75
1.84 |
3.75
3.88 |
3.18
3.31 |
2.75
3.00 |
6.00 |
1.50
1.62 |
9.50
10.12 |
3.19 |
2.62 |
1-3/4-5 or
1.750-5 |
2" |
2.00 |
2.00
2.09 |
4.00
4.25 |
3.62
3.87 |
3.06
3.44 |
6.88 |
1.75
1.88 |
10.56
11.44 |
3.38 |
3.00 |
2-4-1/2 or
2.000-4.50 |
2-1/2 |
2.50 |
2.50
2.62 |
5.00
5.25 |
4.50
4.75 |
3.81
4.19 |
8.50 |
2.19
2.31 |
13.19
14.06 |
4.25 |
3.75 |
2-1/2-4 or
2.500-4 |
FORGED EYEBOLTS, SHOULDER PATTERN ANSI/ASME B18.15 |
Nominal Size |
S |
H |
Y |
R |
E |
L |
M |
Thread
Size
UNC-2A |
J |
D |
T |
U |
Shank
Dia. |
Shank Length |
Eye ID |
Nom. Eye OD |
Eye Sect. Dia. |
Overall Length |
Minimum Length Full
Thread |
Center Line to
Sldr.
|
Sldr. Dia. |
Sldr.
Hgt. |
Radius Under
Sldr.
|
Long
Leng. |
Short
Leng. |
Long
Leng. |
Short
Leng. |
1/4 |
0.25 |
0.25
0.28 |
1.00
1.06 |
1.00
1.06 |
0.69
0.81 |
1.19 |
0.19
0.25 |
2.22
2.53 |
0.75 |
0.75 |
1/4-20 or
.250-20 |
0.69
0.81 |
0.50
0.56 |
0.12
0.19 |
0.015
0.025 |
5/16 |
0.31 |
0.31
0.34 |
1.12
1.19 |
1.06
1.13 |
0.81
0.94 |
1.44 |
0.25
0.31 |
2.66
2.97 |
0.81 |
0.75 |
5/16-18 or
.3125-18 |
0.88
1.00 |
0.56
0.62 |
0.12
0.19 |
0.015
0.025 |
3/8 |
0.38 |
0.38
0.41 |
1.25
1.38 |
1.12
1.25 |
0.94
1.06 |
1.69 |
0.31
0.38 |
3.09
3.47 |
0.88 |
0.75 |
3/8-16 or
.375-16 |
1.06
1.19 |
0.62
0.69 |
0.12
0.19 |
0.015
0.025 |
7/16 |
0.44 |
0.44
0.47 |
1.38
1.50 |
1.13
1.25 |
1.00
1.12 |
1.81 |
0.34
0.41 |
3.41
3.78 |
1.00 |
0.75 |
7/16-14 or
.4375-14 |
1.19
1.31 |
0.75
0.81 |
0.19
0.25 |
0.015
0.025 |
1/2 |
0.50 |
0.50
0.53 |
1.50
1.62 |
1.13
1.25 |
1.12
1.25 |
2.12 |
0.44
0.50 |
3.81
4.19 |
1.12 |
0.75 |
1/2-13 or
.500-13 |
1.31
1.44 |
0.88
0.94 |
0.19
0.25 |
0.015
0.025 |
9/16 |
0.56 |
0.56
0.59 |
1.62
1.75 |
1.21
1.34 |
1.19
1.31 |
2.25 |
0.47
0.53 |
4.19
4.56 |
1.25 |
0.84 |
9/16-12 or
.5625-12 |
1.50
1.62 |
0.94
1.00 |
0.22
0.28 |
0.020
0.045 |
5/8 |
0.62 |
0.62
0.66 |
1.75
1.88 |
1.31
1.44 |
1.31
1.44 |
2.56 |
0.56
0.62 |
4.56
4.94 |
1.38 |
0.94 |
5/8-11 or
.625-11 |
1.59
1.72 |
1.00
1.06 |
0.25
0.31 |
0.020
0.045 |
3/4 |
0.75 |
0.75
0.78 |
2.00
2.12 |
1.50
1.62 |
1.44
1.56 |
2.81 |
0.62
0.69 |
5.06
5.50 |
1.62 |
1.12 |
3/4-10 or
.750-10 |
1.72
1.91 |
1.12
1.25 |
0.25
0.31 |
0.020
0.045 |
7/8 |
0.88 |
0.88
0.91 |
2.25
2.38 |
1.75
1.88 |
1.56
1.69 |
3.19 |
0.75
0.81 |
5.75
6.19 |
1.81 |
1.31 |
7/8-9 or
.875-9 |
2.03
2.22 |
1.31
1.44 |
0.31
0.38 |
0.040
0.065 |
1" |
1.00 |
1.00
1.06 |
2.50
2.62 |
1.94
2.06 |
1.69
1.81 |
3.56 |
0.88
0.94 |
6.44
6.88 |
2.06 |
1.50 |
1-8 or
1.000-8 |
2.22
2.41 |
1.50
1.62 |
0.38
0.44 |
0.060
0.095 |
1-1/8 |
1.12 |
1.12
1.19 |
2.75
2.88 |
2.13
2.26 |
1.94
2.06 |
4.06 |
1.00
1.06 |
7.31
7.75 |
2.31 |
1.69 |
1-1/8-7 or
1.125-7 |
2.59
2.78 |
1.69
1.81 |
0.44
0.50 |
0.060
0.095 |
1-1/4 |
1.25 |
1.25
1.34 |
3.00
3.12 |
2.38
2.50 |
2.12
2.25 |
4.44 |
1.09
1.16 |
8.00
8.44 |
2.50 |
1.88 |
1-1/4-7 or
1.250-7 |
2.84
3.03 |
1.88
2.00 |
0.50
0.56 |
0.060
0.095 |
1-1/2 |
1.50 |
1.50
1.59 |
3.50
3.62 |
2.75
2.87 |
2.44
2.56 |
5.19 |
1.31
1.38 |
9.22
9.72 |
3.00 |
2.25 |
1-1/2-6 or
1.500-6 |
3.19
3.44 |
2.12
2.25 |
0.50
0.62 |
0.060
0.095 |
1-3/4 |
1.75 |
1.75
1.84 |
3.75
3.88 |
3.18
3.31 |
2.75
3.00 |
6.00 |
1.50
1.62 |
10.50
11.12 |
3.19 |
2.62 |
1-3/4-5 or
1.750-5 |
3.88
4.12 |
2.50
2.62 |
0.50
0.62 |
0.060
0.095 |
2" |
2.00 |
2.00
2.09 |
4.00
4.12 |
3.62
3.79 |
3.06
3.44 |
6.88 |
1.75
1.88 |
11.53
12.22 |
3.38 |
3.00 |
2-4-1/2 or
2.000-4.50 |
4.25
4.50 |
2.88
3.00 |
0.62
0.75 |
0.060
0.095 |
|
