Description:

A one-piece bolt with a 24-sided head and a flanged bearing surface, made of alloy steel.



Advantages:

Popular in aircraft manufacturing and aftermarket because of its ease of installation with pneumatic wrenches.

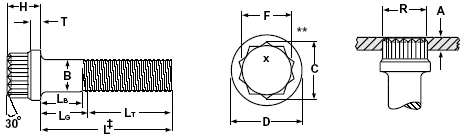

12 Point Flange Screw





12-POINT FLANGE SCREWS ALLOY STEEL IFI 115
Nominal Size
B
D
F
C

H
T
A
R

LT
Body Diameter
Flange Diameter

Width Across

Flats

Width Across Corner
Head Height
Flange Thick

Gaging

Ring

Thickness

Gaging

Ring

Diameter

Thread Length
Min
Max
Min
Max
Min
Max
Max
Min
Max
Min
Max
Min
Basic
1/4
0.2435
0.375
0.365
0.252
0.244
0.278
0.260
0.058
0.0525
0.0522
0.2783
0.2780
1.000
5/16
0.3053
0.469
0.457
0.315
0.306
0.348
0.312
0.074
0.0600
0.0597
0.3483
0.3480
1.125
3/8
0.3678
0.562
0.550
0.377
0.368
0.420
0.375
0.095
0.0711
0.0708
0.4203
0.4200
1.250
7/16
0.4294
0.656
0.642
0.438
0.429
0.489
0.438
0.109
0.0840
0.0837
0.4893
0.4890
1.375
1/2
0.4919
0.750
0.735
0.502
0.493
0.562
0.500
0.129
0.0948
0.0945
0.5623
0.5620
1.500
9/16
0.5538
0.844
0.828
0.564
0.555
0.633
0.563
0.145
0.1071
0.1068
0.6333
0.6330
1.625
5/8
0.6163
0.938
0.921
0.627
0.618
0.705
0.625
0.166
0.1179
0.1176
0.7053
0.7050
1.750
3/4
0.7406
1.125
1.107
0.752
0.743
0.847
0.750
0.200
0.1416
0.1413
0.8473
0.8470
2.000
7/8
0.8647
1.312
1.293
0.877
0.866
0.987
0.875
0.234
0.1656
0.1653
0.9873
0.9870
2.250
1
0.9886
1.500
1.479
1.003
0.991
1.130
1.000
0.268
0.1893
0.1890
1.1303
1.1300
2.500
1-1/8
1.1086
1.688
1.665
1.128
1.115
1.271
1.125
0.310
0.2109
0.2106
1.2713
1.2710
2.750
1-1/4
1.2336
1.875
1.852
1.253
1.240
1.414
1.250
0.350
0.2331
0.2328
1.4143
1.4140
3.000
1-3/8
1.3568
2.062
2.038
1.378
1.365
1.556
1.375
0.392
0.2544
0.2541
1.5563
1.5560
3.250
1-1/2
1.4818
2.250
2.224
1.503
1.489
1.697
1.500
0.433
0.2763
0.2760
1.6973
1.6970
3.500

**Product standards require the manufacturer’s head marking to appear on the top of all bolts 1/4” diameter and larger. “X” represents one location such a marking may appear.
